MultiRange Digital Timer, 12-48V AC/DC

View Cart

$50.44

Quantity pricing

Quantity pricing

Add to Cart

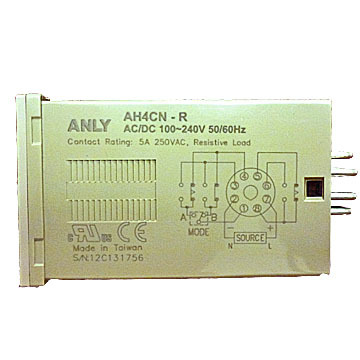

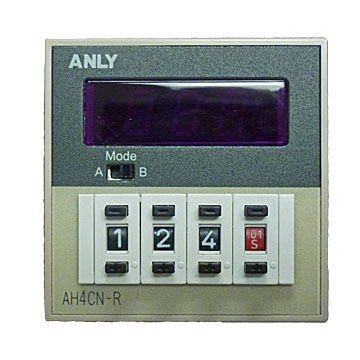

The AH4CN-R Multi-Range Digital timer provides dual modes of operation. Mode 1 provides DPDT time-limiting (ON-DELAY) contacts. Mode 2 provides  SPST time-limiting (ON-DELAY) contacts and a SPST instantaneous set of contacts.

For Quantities over 50 pieces contact us for pricing.

Download PDF

• Power Surge & High Frequency protected
• 7 segment display - clear and effective monitoring
• 9.99 second - ~ 9990 hour time range
•

2 mod operation:

DPDT (On Delay, time limiting)

SPDT (Instantaneous, and time limited ON-Delay)

• External Pause (G-type)
• UL recognized, CE certified
• Operating voltage: 12 to 48V or 100 to 240V (AC or DC)
• Allowable operating voltage range: 85 to 110% of rated operating voltage
• Rated frequency: 50/60 Hz
• Contact rating: 250 VAC 5A
• Reset time: 0.1s maximum
• Power consumption: Approx. 2.5 VA
• Life: Mechanical - 5,000,000 cycles | Electrical - 100,000 cycles
• Ambient temperature: -10? to +50C?
? Humidity: MAX 85% RH
• Weight: Approximately 130g
• Mounting: 8 Pin Socket

Ingram Products Inc.   provides free individual PDF catalog cutsheets on all our products. In addition to the product data you can view right here on the site, the cutsheets provide dimensioned drawings, mounting hole templates and other useful information.


If you have trouble opening our PDF documents, you may wish to download the latest version of Adobe Viewer.
Help me get the latest version of Adobe Reader.
