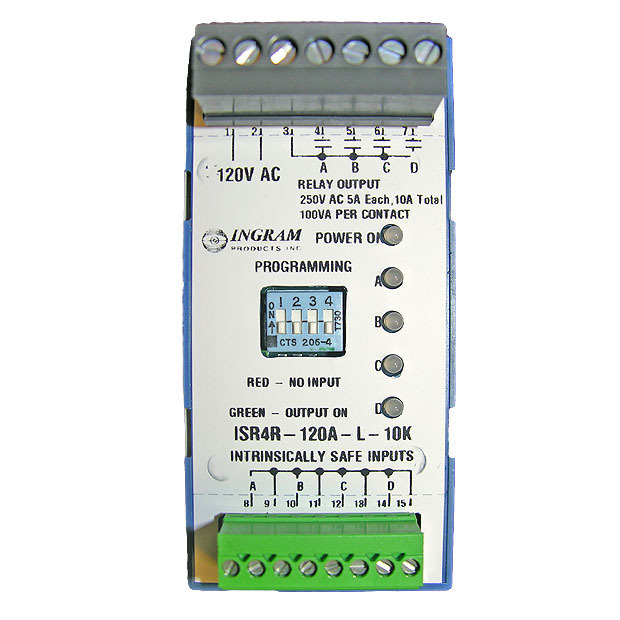

IS Relay,4 chan.,Latch,120VAC,DIN rail,10K sense

View Cart

$693.00

Quantity pricing

Quantity Price
1 - 4 $693.00
5 - 9 $650.75
10 - 19 $590.25
20+ $542.25
Add to Cart

Great for level control in hazardous environments!  Intrinsically safe inputs protect against possibility of explosion in areas of volatile liquids or gases.  Relay is designed to perform multiple functions, including lift station monitoring and pump activation.  Read instructions carefully if you are unfamiliar with the hookup and operation of this type of relay.

Intrinsically safe input relays are used in environments where there is a danger of ignition or explosion. This product is UL listed in the US and Canada and rated for Class I, Division 1, Groups A,B,C & D.



Please note this item may have a lead time of up to 6 weeks.

Download PDF

Latching Logic
Pump Down or Pump Up Operation
Outputs Isolated from Inputs
Contact or Probe Inputs
Conductivity or Resistance Inputs
Output and Input LED Indication
Class I, Division 1, Groups A,B,C & D
DIN Rail Mount
  Electrical
Supply Voltage: 120VAC ?10%
Power: 2VA
Input Sensitivity: 10Kilohm
Pick-up & Drop-out Delays: 1 second
Max. Open Circuit Voltage: 5 volts AC
Max. Source Current: 0.1 milliamp AC
Output Rating @ 25?C:
                                        5 Amps or 100VA per contact
                                    10 Amps total
                                    250VAC maximum contact rating
                                    20,000,000 Mechanical Cycles
  Physical
Mounting: DIN Rail mount
? Termination: Touch safe screw terminals,
with lift mechanism, #12 AWG max. for
supply and relay contacts, #16 AWG
max. for intrinsically safe inputs.
Weight:  10 oz.
Dimensions: See tab
  Ambient Temperatures
Operating:   0?C to 50?C
Storage:   -40?C to 85?C







Ingram Products Inc.   provides free individual PDF catalog cutsheets on all our products. In addition to the product data you can view right here on the site, the cutsheets provide dimensioned drawings, mounting hole templates and other useful information.


If you have trouble opening our PDF documents, you may wish to download the latest version of Adobe Viewer.
Help me get the latest version of Adobe Reader.
