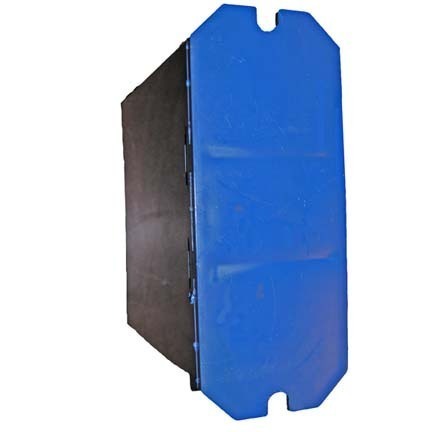

IS Relay,2 chan.,120VAC,surface mnt, 10K Ohm sense

View Cart

$693.00

Quantity pricing

Add to Cart

Intrinsically safe input relays are used in environments where there is a danger of ignition or explosion. This product is UL listed in the US and Canada and rated for Class I, Division 1, Groups A,B,C & D.

Download PDF

• 2 Channels
• Shorted Input Sensing
• Outputs Isolated from Supply
• Contact or Probe Inputs
• Conductivity or Resistance Inputs
• Output and Input LED Indication
• Independent Operation
• Pluggable Terminal Blocks
• Surface Mount
• Class I, Division 1, Groups A,B,C & D





Electrical
• Supply Voltage: 120VAC ?10%
• Power: 2VA
• Input Sensitivity: 10 Kilohm
• Pick-up & Drop-out Delays: 1 second
• Max. Open Circuit Voltage: 5 volts AC
• Max. Source Current: 0.1 milliamp AC
• Output Rating @ 25?C:
                                          5 Amps or 100VA per contact
                                      10 Amps total
                                      250VAC maximum contact rating
                                      20,000,000 Mechanical Cycles


Physical
• Mounting: Surface mount
? Termination: Touch safe screw terminals,
with lift mechanism, #12 AWG max. for
supply and relay contacts, #16 AWG
max. for intrinsically safe inputs.
• Weight: 10 oz.
• Dimensions: See figure at bottom left
  Ambient Temperatures
• Operating:   0?C to 50?C
• Storage:   -40?C to 85?C
