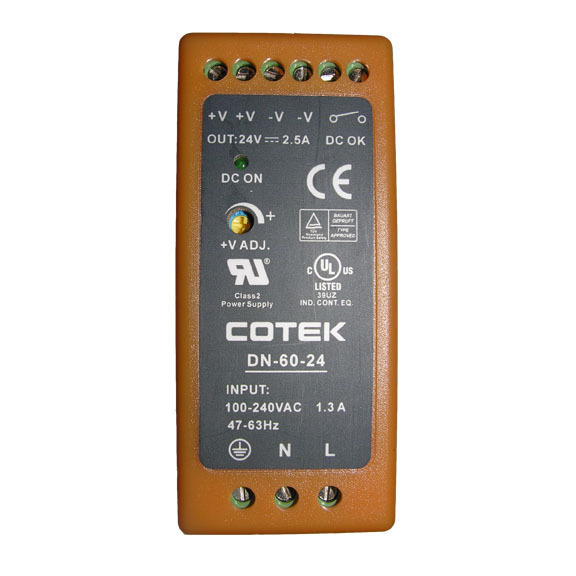

Our DN-60 units provides output voltages of 12 and 24 VDC. The outputs are capable of being adjusted above the nominal voltages. Being able to provide ±10% of output voltage adjustment allows customers to deploy the same power supply in a variety of different configurations. Capable of operating over a wide range of temperatures from -20 degrees C, the DN series can provide full power output up to +50 degrees and with derating to +70 degrees C.
Operating Characteristics
| MODEL NO. | INPUT
VOLTAGE | OUTPUT
WATTAGE | OUTPUT
VOLTAGE | OUTPUT
CURRENT | EFF.
(TYP.) |
| |
| DN-10-12 | 88~264 VAC | 10 WATTS | 12 VDC | 0.84 Amps | 81% |
| DN-10-24 | 88~264 VAC | 10 WATTS | 24 VDC | 0.42 Amps | 81% |
| DN-20-12 | 88~264 VAC | 20 WATTS | 12 VDC | 1.7 Amps | 83% |
| DN-20-24 | 88~264 VAC | 20 WATTS | 24 VDC | 1.0 Amps | 86% |
| DN-40-12 | 88~264 VAC | 40 WATTS | 12 VDC | 3.4 Amps | 84% |
| DN-40-24 | 88~264 VAC | 40 WATTS | 24 VDC | 1.7 Amps | 84% |
| DN-60-12 | 88~264 VAC | 60 WATTS | 12 VDC | 5.0 Amps | 86% |
| DN-60-24 | 88~264 VAC | 60 WATTS | 24 VDC | 2.5 Amps | 87% |
| DN-100-12 | 88~264 VAC | 100 WATTS | 12 VDC | 7.5 Amps | 87% |
| DN-100-24 | 88~264 VAC | 100 WATTS | 24 VDC | 4.0 Amps | 87% |
