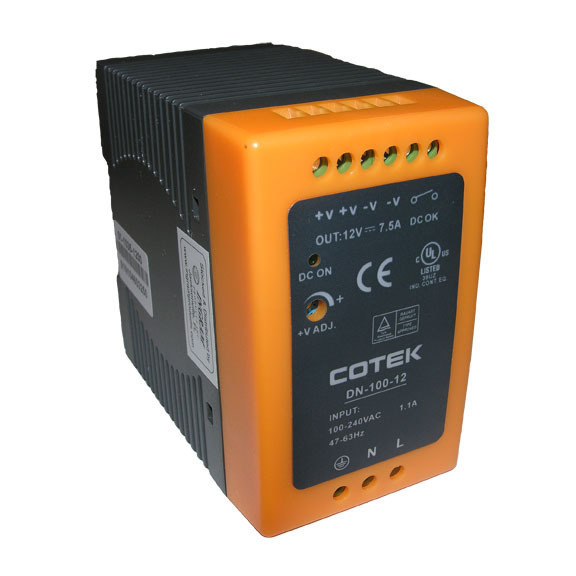

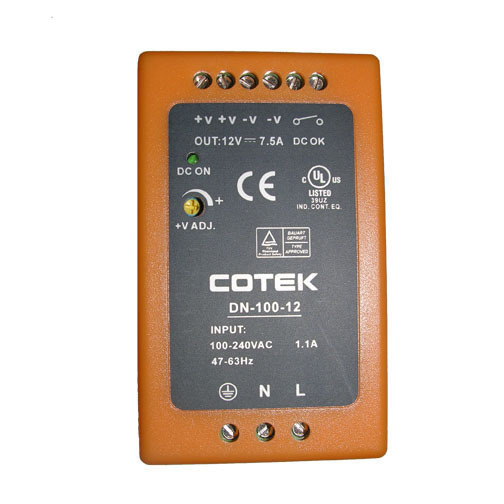

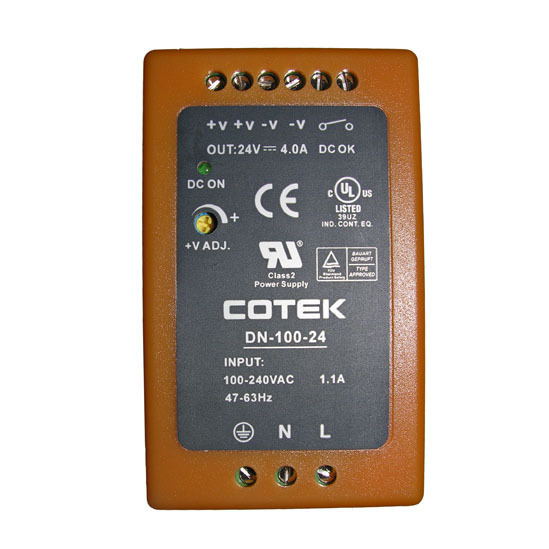

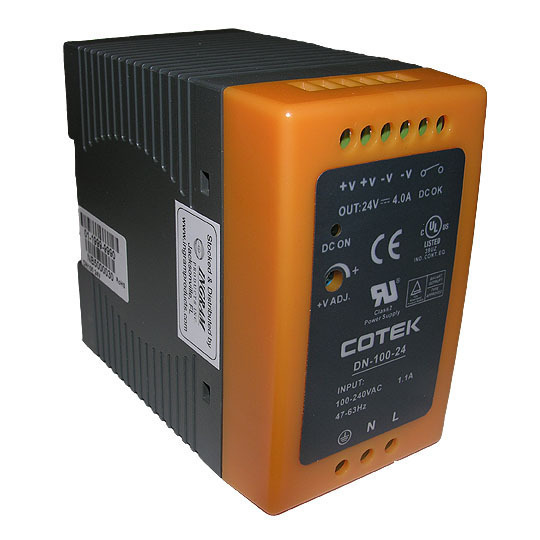

Switching power supply, 100 watts @ 12VDC

View Cart

$72.79

Quantity pricing

Add to Cart

OEM NET PRICING



Operating Characteristics

MODEL NO.
INPUT
VOLTAGE
OUTPUT
WATTAGE
OUTPUT
VOLTAGE
OUTPUT
CURRENT
EFF.
(TYP.)

DN-10-12
88~264 VAC
10 WATTS
12 VDC
0.84 Amps
81%
DN-10-24
88~264 VAC
10 WATTS
24 VDC
0.42 Amps
81%
DN-20-12
88~264 VAC
20 WATTS
12 VDC
1.7 Amps
83%
DN-20-24
88~264 VAC
20 WATTS
24 VDC
1.0 Amps
86%
DN-40-12
88~264 VAC
40 WATTS
12 VDC
3.4 Amps
84%
DN-40-24
88~264 VAC
40 WATTS
24 VDC
1.7 Amps
84%
DN-60-12
88~264 VAC
60 WATTS
12 VDC
5.0 Amps
86%
DN-60-24
88~264 VAC
60 WATTS
24 VDC
2.5 Amps
87%
DN-100-12
88~264 VAC
100 WATTS
12 VDC
7.5 Amps
87%




Download PDF

• Universal AC input 88 to 264VAC
•

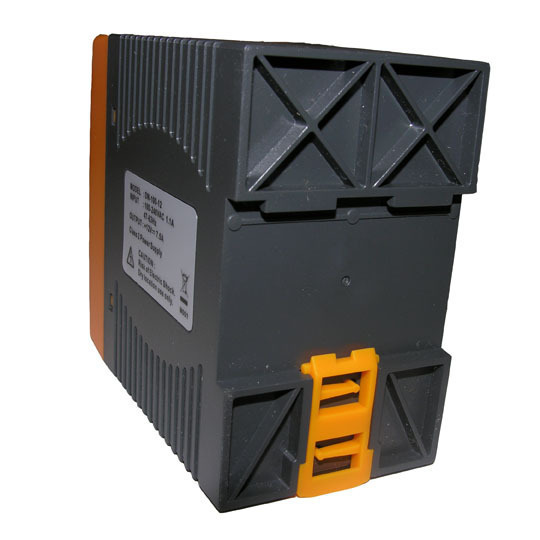

DIN Rail Mountable
• Brown-out Protection
• Short Circuit/Overload/Over voltage Protected
• DC OK Signal Output
• High Effeciency, Long Life, High Reliability
• UL Listed - Files E326304 and E325418
• UL Class 2 Power (24V version only)
• Input: 88V to 264VAC, 47-63 Hz
• Max Input voltage: 265 VAC
• Inrush current:  30A/115VAC, 60A/230VAC
•

Over Load:  > 102% rated output power.
Protection type: constant current limiting
Over Voltage:  115% to 150% of rated output voltage
Protection type: latch-off mode
• Isolation resistance:  100M ohms (min.)
• Operating temperature:  -20 to 70?C
• Storage temperature:  -40 to +85?C, 10 to 95% R.H.
• Working Relative humidity:  20-90% RH
• Cooling:  free air convection
• Temperature coefficient:  0.03% / ?C  (0 to 50?C)
• Dimensions:  2-3/16"W x 3-9/16" H x 3-7/8"D (55 x 90 x 99 mm)
• Weight:  0.9 pounds
• LED Indicator:  Green (DC ok)
• DC OK Signal:  Open collector, Maximum I = 40mA
• Approvals:  UL508 Listed, UL1310; UL File Nos.
  E326304 and E325418.   TUV: EN60950-1
  FCC: Class B
• See Product cut sheet for more details
