Round Hour Meter, 115VAC

View Cart

$32.79

Quantity pricing

Add to Cart

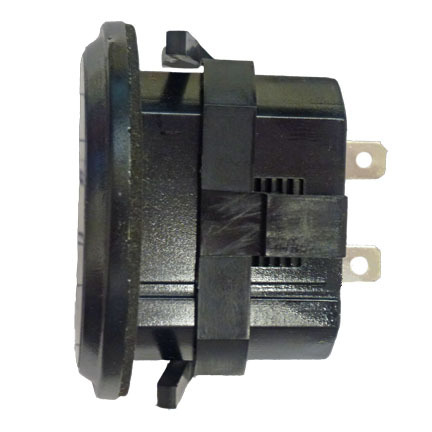

This AC hour meter is a low cost reliable hour meter incorporating the latest state-of-the-art in electronics. It's quartz crystal time base insures accurate long term time-keeping. A reliable electromechanical wheel-type indicator is used to store accumulated hours. This compact tamperproof meter is sealed against the environment to provide years of service. The TSO elapsed time indicator was designed for use on test and recording equipment, for providing maintenance control, for establishing warranty programs, for measuring machine utilization and production time, or for any application where time-in-use is to be determined.

All prices shown are OEM net.

Download PDF

Hermetically sealed to keep out dirt and corrosive gases
6 digit display
Low power consumption
No battery needed
Accurate quartz crystal oscillator
Solid state drive circuit
Shock resistance to 8g
Wide temperature range
1/4" quick connect terminals

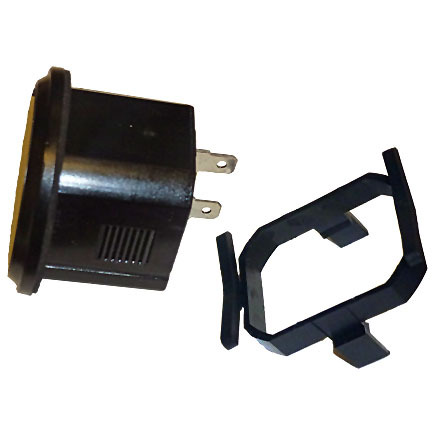

Snap-on retainer clip mount
Voltage: 115VAC
Power consumed: less than 0.4 watts
Shock, Operating: 8 G (10 - 75Hz 1-8 G)
Accuracy:  ? 1 minute per 24 hours
Operating temperature: -30?C to +65?C
Termination:  1/4" male blade terminals
Panel Cutout: Fits 2.00" diameter hole
Certifications: UL Recognized - US & Canada

Ingram Products Inc.   provides free individual PDF catalog cutsheets on all our products. In addition to the product data you can view right here on the site, the cutsheets provide dimensioned drawings, mounting hole templates and other useful information.
